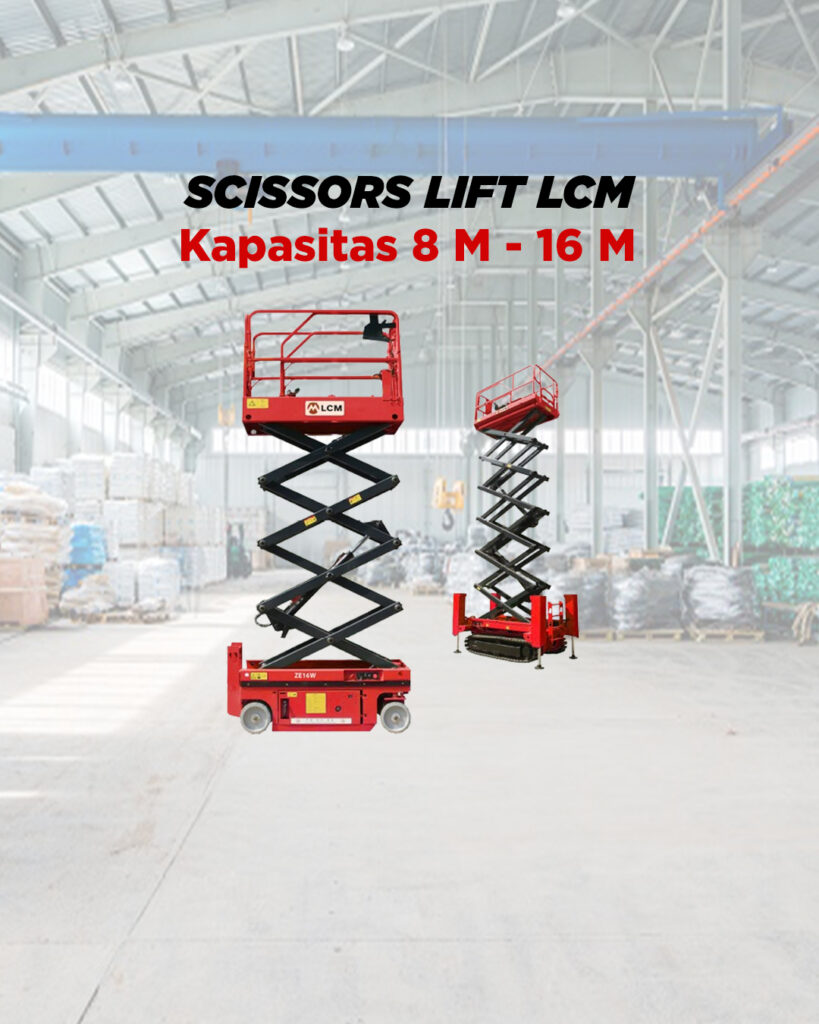

🏗️ LCM Scissor Lift 8 – 16 Meter
Deskripsi Produk
Scissor lift Brand LCM adalah merk Tangga Electric yang telah melalui uji Standarisasi International dengan sertifikasi CE via SGS United Kingdom Ltd, Certificate of Origin, ISO14001, ISO 9001. PT Liftco Indo Perkasa yang menjual scissor lift harga yang murah Diseluruh Indonesia (Sumatra, Jawa, Bali, NTB, NTT, Kalimantan, Sulawesi, Ambon, Papua)
Scissorlift merupakan alat yang bisa digunakan untuk aplikasi pekerjaan pada ketinggian tertentu seperti perawatan gedung , proyek konstruksi mechanical & electrical, warehouse, pabrik dan bangunan retail. Scissorlift bergerak vertikal seperti gunting atau biasa disebut “pentograph” disertai platform untul pijakan membawa pekerja, operator serta material peralatan yang diperlukan sesuai rekomendasi alat. Sehingga pekerjaan menjadi lebih aman, efektif , efisien dan aplikatif. Namun lebih utama lagi, pembelian equipment tersebut harus dengan harga yang kompetitif.
⚙️ Spesifikasi Teknis
Model Tersedia:
ZE10W | ZE12W | ZE16W
📊 Spesifikasi Detail per Model
| Spesifikasi | ZE10W | ZE12W | ZE16W |
|---|---|---|---|
| Max. Working Height | 9.9 m | 11.8 m | 15.8 m |
| Max. Platform Height | 7.8 m | 9.8 m | 13.8 m |
| Platform Dimensions (L×W×H) | 2.27×1.12×1.1 m | 2.27×1.12×1.1 m | 2.27×1.12×1.1 m |
| Length stowed | 2.43 m | 2.43 m | 2.85 m |
| Width stowed | 1.21 m | 1.21 m | 1.31 m |
| Height stowed | 2.35 m | 2.47 m | 2.6 m |
| Height (guardrails folded) | 1.9 m | 1.93 m | 2.06 m |
| Slide-out platform extension | 0.9 m | 0.9 m | 0.9 m |
| Ground clearance (retracted) | 0.11 m | 0.11 m | 0.12 m |
| Ground clearance (pothole guards deployed) | 0.02 m | 0.02 m | 0.02 m |
| Wheelbase | 1.87 m | 1.87 m | 2.04 m |
| Weight | 2350 kg | 2550 kg | 3570 kg |
| Max. Lift Capacity | 450 kg | 450 kg | 230 kg |
| Lift capacity (extension deck) | 113 kg | 113 kg | 113 kg |
| Max. Platform occupancy | 2 | 3 | 3 |
| Drive speed (stowed) | 3.2 km/h | 3.2 km/h | 3.2 km/h |
| Drive speed (raised) | 0.8 km/h | 0.8 km/h | 0.8 km/h |
| Gradeability | 25% | 25% | 25% |
| Max. Working Angle (front/rear) | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Turning radius (inside/outside) | 0/2.2 m | 0/2.2 m | 0/2.5 m |
| Lifting speed (raise/lower) | 3–5 m/min | 3–5 m/min | 3–5 m/min |
| Tires (solid, non-marking) | φ381×127 mm | φ381×127 mm | φ381×127 mm |
| Pump motor power | 3.3 kW | 4.5 kW | 4.5 kW |
| Hydraulic Oil Capacity | 15 L | 20 L | 30 L |
| Battery | 4×6V/200Ah | 4×6V/200Ah | 4×6V/240Ah |
| Charger | 24V/36A | 24V/36A | 24V/36A |
| Walking drive | hydraulic | hydraulic | hydraulic |
| Walking drive battery | 24V/200Ah | 24V/200Ah | 24V/240Ah |
| Walking drive charger | 24V/36A | 24V/36A | 24V/36A |
