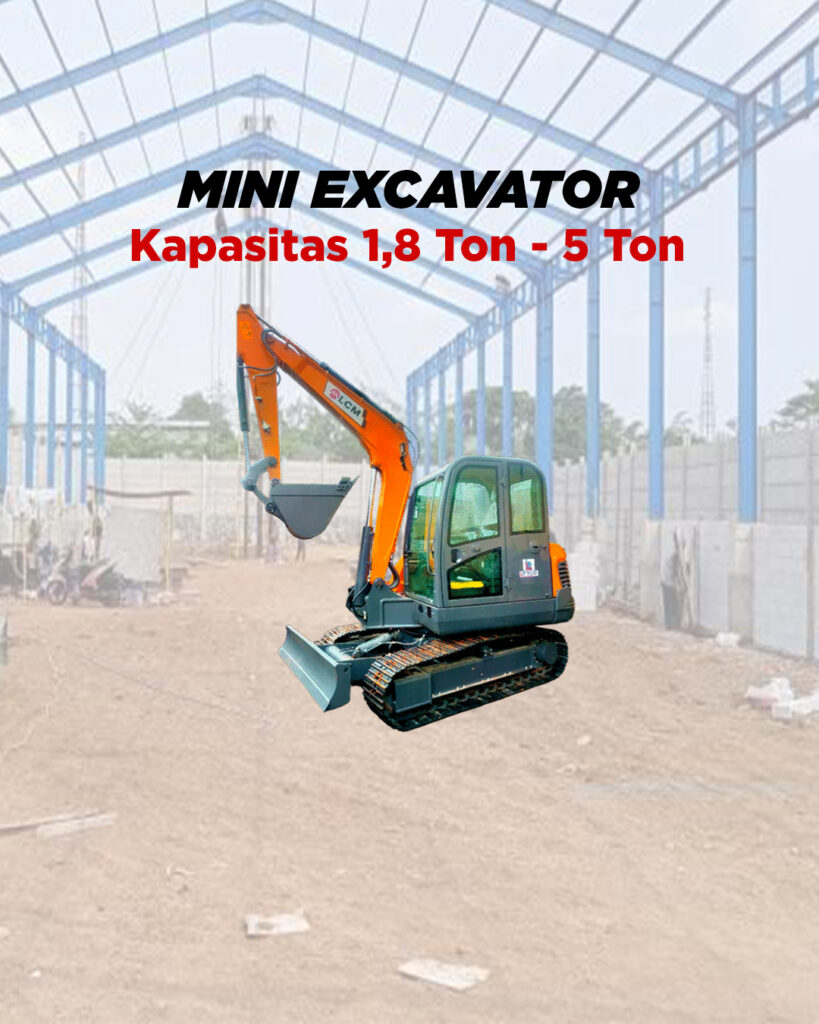

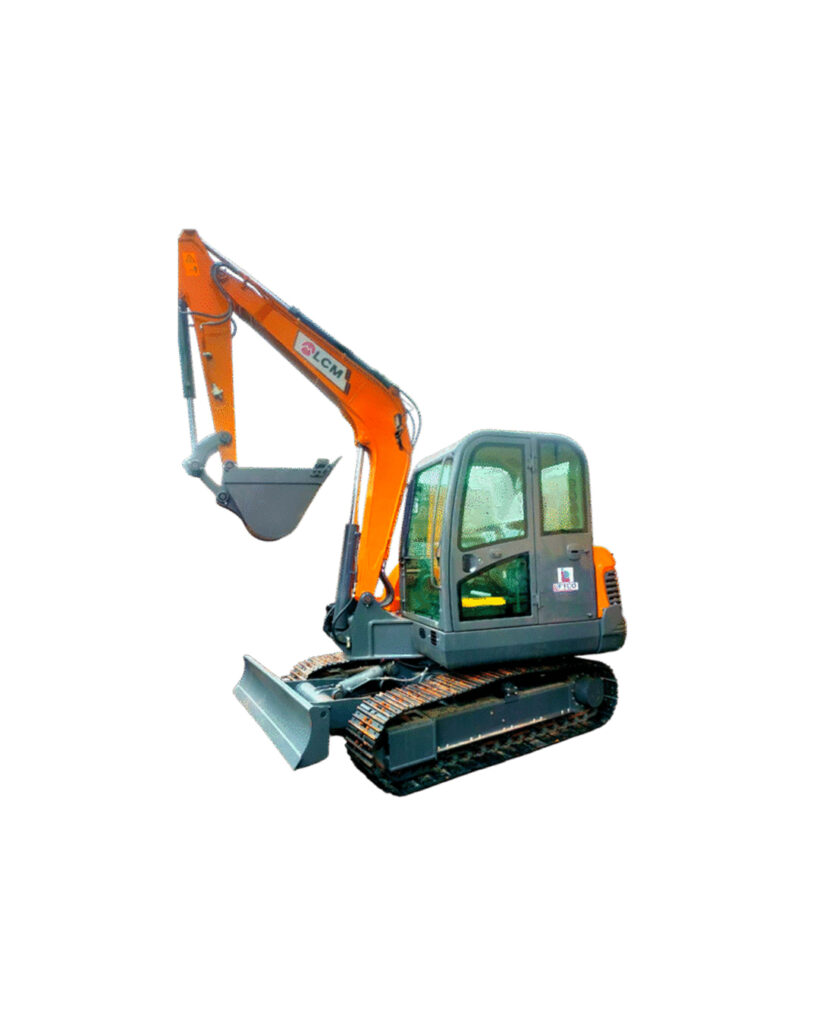

MINI EXCAVATOR LCM


Mini Excavator LCM

Mini Excavator LCM adalah alat berat kompak dengan performa maksimal untuk berbagai kebutuhan konstruksi, perkebunan, dan infrastruktur. Dirancang lincah, hemat bahan bakar, serta mudah dioperasikan, unit ini ideal untuk pekerjaan galian, perataan tanah, pembuatan drainase, hingga pemasangan pipa — bahkan di area kerja yang sempit sekalipun.

PT Liftco Indo Perkasa menyediakan Mini Excavator LCM dengan harga kompetitif dan pengiriman ke seluruh Indonesia (Sumatra, Jawa, Bali, NTB, NTT, Kalimantan, Sulawesi, Ambon, Papua).

Pilihan Model

  • LCM ME-18 (±1.8 Ton)

  • LCM ME-20 (±2.0 Ton)

  • LCM ME-35 (±3.5 Ton)

  • LCM ME-50 (±5.0 Ton)

Spesifikasi Utama

Operating Weight

  • ME-18: ±1.7–1.9 ton

  • ME-20: ±1.9–2.2 ton

  • ME-35: ±3.3–3.8 ton

  • ME-50: ±4.8–5.5 ton

Engine Power

  • ME-18: ±11–15 kW (15–20 HP)

  • ME-20: ±14–18 kW (19–24 HP)

  • ME-35: ±18–25 kW (24–34 HP)

  • ME-50: ±28–36 kW (38–48 HP)

Bucket Capacity

  • ME-18: ±0.04–0.06 m³

  • ME-20: ±0.05–0.08 m³

  • ME-35: ±0.10–0.15 m³

  • ME-50: ±0.18–0.22 m³

Maximum Digging Depth

  • ME-18: ±2100–2400 mm

  • ME-20: ±2300–2600 mm

  • ME-35: ±3000–3400 mm

  • ME-50: ±3600–3800 mm

Maximum Digging Reach

  • ME-18: ±3700–4100 mm

  • ME-20: ±3900–4300 mm

  • ME-35: ±5200–5600 mm

  • ME-50: ±6000–6300 mm

Maximum Dump Height

  • ME-18: ±2300–2600 mm

  • ME-20: ±2400–2700 mm

  • ME-35: ±3500–3900 mm

  • ME-50: ±3900–4200 mm

Fitur & Sistem

Track Type

  • ME-18 / ME-20: Rubber Track

  • ME-35: Rubber / Steel

  • ME-50: Steel (Rubber opsional)

Travel Speed (Low / High)

  • ME-18: 2.0–3.5 / 3.5–4.5 km/jam

  • ME-20: 2.0–3.5 / 4.0–4.8 km/jam

  • ME-35: 2.5–3.0 / 4.5–5.0 km/jam

  • ME-50: 2.8–3.2 / 4.8–5.5 km/jam

Gradeability: 30–35%

Hydraulic Flow & Pressure

  • ME-18: 20–40 L/min @ ±20–24 MPa

  • ME-20: 25–45 L/min @ ±21–24 MPa

  • ME-35: 50–80 L/min @ ±24–28 MPa

  • ME-50: 80–120 L/min @ ±28–32 MPa

Kapasitas Tangki

  • Fuel Tank: ±20–110 L (sesuai model)

  • Hydraulic Oil Tank: ±18–80 L (sesuai model)

Overall Dimensions (P × L × T)

  • ME-18: ±3400 × 1000 × 2350 mm

  • ME-20: ±3600 × 1050 × 2400 mm

  • ME-35: ±4500 × 1700 × 2500 mm

  • ME-50: ±5400 × 2000 × 2600 mm

Kelengkapan Standar

  • Cabin / Canopy sesuai model

  • Dozer Blade (tersedia di semua model)

  • Auxiliary Hydraulics 1–3 line (hammer / auger / thumb tergantung model)

  • Noise Level: ±72–79 dB(A)
